29 January 2010

Image Field04 ///////////////////////////////////////////////////////////

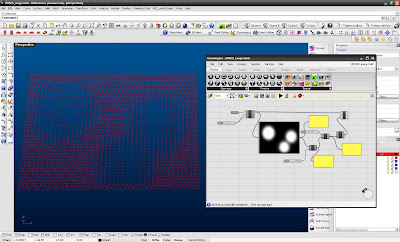

Investigation on the potentiality of numerical field generated by a source image. The height of one ellipse control point is linked with grayscale value of the image generating parametric variations in the starting flatten pattern.

27 January 2010

Image Field03 ///////////////////////////////////////////////////////////

A quick test from image field definition (link1, link2). Height of panels and apertures are controlled by an image in grayscale.

20 January 2010

Rhino Tessellation04c_GH curvature analisys pattern01///////////////////////////////

I've translated this rhinoscript (link1, link2) in a grasshopper version.
The definition:
.subdivides a surface into a quadrangular panels.
.plots a circle or a closed spline(similar to an ellipse) with center in the centroid of each panels.
.scale the radius dimension trough a numeric values extrapolated from the curvature analisys of the input surface.

17 January 2010

rh lattice tesselation01//////////////////////////////////////////

Just another code done some time ago on lattice tesselation. The code :
.divides a surface in U&V points defined by the user
.draws a matrix of points that follows the simple pattern of two splines
.creates circles ( number of circles are defined by the user) perpendicular to a curve
.creates a loft surface trough the circles



here the code:
Option Explicit
'Script written by Davide del Giudice
'Script copyrighted by www.madeincalifornia.blogspot.com
'Script version venerdì 28 agosto 2009 16.07.36
'Original code SUPERMANOEUVRE


MsgBox " LATTICE TESSELATION/// Script written by Davide del Giudice/// www.madeincalifornia.blogspot.com "

Call DivideSurface()
Sub DivideSurface()
'--------------------
'DEFINE INPUT
Dim strSrf:strSrf= rhino.getobject("Select surface",8,16)
If isNull(strsrf) Then Exit Sub
Dim intUint: intUint= rhino.getInteger(" U divisions", 20,4,100)
Dim intVint:intVint= rhino.GetInteger(" V divisions", 20,4,100)

Dim IntNPts: intNPts = Rhino.GetInteger("how many samples?", 10, 2, 100) 'chiedo il dimensionamento

If isNull(intUint) Then Exit Sub
If isNull(intVint) Then Exit Sub
If isNull(IntNPts) Then Exit Sub



'-----------
'SCRIPT BODY
rhino.print" script started now, enjoy!"
'-----------
'Get U values
Dim arrSrfDomU : arrSrfDomU= Rhino.SurfaceDomain(strSrf,0)
Dim uMin: uMin= arrsrfDomU (0)
Dim uMax:uMax = arrsrfDomU (1)
Dim uStep:uStep=(uMax-uMin)/intUint

'-----------------
'Get V values
Dim arrSrfDomV : arrSrfDomV= Rhino.SurfaceDomain(strSrf,1)
Dim vMin: vMin= arrsrfDomV (0)
Dim vMax:vMax = arrsrfDomV (1)
Dim vStep:vStep=(vMax-vMin)/intVint


'------------------
'crate panels
Dim i,j
Dim arrpt01,arrpt02,arrpt03,arrpt04,arrpt05,arrpt06,arrpt07,arrpt08,arrpt09,arrpt10,arrpt11,arrpt12,arrpt13,arrpt14,arrcnrpts1,arrcnrpts2,arrpoints,strline1,strline2


For i=uMin To uMax-uStep Step 6*uStep

For j= vMin To vMax-vStep Step 2*vStep

'first panel

arrpt01=rhino.EvaluateSurface(strSrf,array(i,j))
arrpt02=rhino.EvaluateSurface(strsrf,array(i+ustep,j))
arrpt03=rhino.evaluateSurface(strsrf,array(i+2*uStep,j+vstep))
arrpt04=rhino.evaluateSurface(strsrf,array(i+3*uStep,j+vstep))
arrpt09=rhino.evaluateSurface(strsrf,array(i+4*uStep,j+vstep))
arrpt10=rhino.evaluateSurface(strsrf,array(i+5*uStep,j))
arrpt11=rhino.evaluateSurface(strsrf,array(i+6*uStep,j))



'second panel

arrpt05=rhino.EvaluateSurface(strSrf,array(i,j+2*vstep))
arrpt06=rhino.EvaluateSurface(strSrf,array(i+ustep,j+2*vstep))
arrpt07=rhino.EvaluateSurface(strSrf,array(i+2*ustep,j+vstep))
arrpt08=rhino.EvaluateSurface(strSrf,array(i+3*ustep,j+vstep))
arrpt12=rhino.EvaluateSurface(strSrf,array(i+4*ustep,j+vstep))
arrpt13=rhino.EvaluateSurface(strSrf,array(i+5*ustep,j+2*vstep))
arrpt14=rhino.EvaluateSurface(strSrf,array(i+6*ustep,j+2*vstep))

'point in an array

arrcnrpts1= array(arrpt01,arrpt02,arrpt03,arrpt04,arrpt09,arrpt10,arrpt11)
arrcnrpts2= array(arrpt05,arrpt06,arrpt07,arrpt08,arrpt12,arrpt13,arrpt14)

Rhino.AddPoints (arrcnrpts1)
rhino.AddPoints(arrcnrpts2)

strline1= rhino.addcurve (arrcnrpts1)
strline2= rhino.addcurve(arrcnrpts2)

Dim arrDom: arrDom = Rhino.CurveDomain(strline1)
Dim dblparam,dblStep
ReDim arrCirc1(intNpts),arrCirc2(intNpts)
Dim k,arrplane1,dblradius,arrplane2

dblStep = (arrDom(1)-arrDom(0))/(intNPts)


For k=0 To intNPts 'Step 0.1


dblParam = arrDom(0) + k*dblStep

arrPlane1 = Rhino.CurvePerpFrame(strline1, dblParam)
arrPlane2 = Rhino.CurvePerpFrame(strline2, dblParam)

arrCirc1(k)= Rhino.AddCircle(arrPlane1, .05)
arrCirc2(k)= Rhino.AddCircle(arrPlane2, .05)
Next

Call Rhino.AddLoftSrf (arrcirc1)
Rhino.AddLoftSrf (arrcirc2)


Next 'end j loop
Next 'endi loop

rhino.HideObject strSrf

rhino.print " script end"

End Sub




07 January 2010

Rh array 01 //////////////////////////////////////////////////////////////////////////////////



Here some codes about array in rhinoscript. The code works with a simple array of points and creates spheres with growing radius. The position of the points in the 3d space is determinated by a formula. These are some exercises starting from scratch in rhinoscript code done some time ago.

MIC Sphere array1a
///////////////////////////////////////////////////////////////////////////////////////////////

Option Explicit
'Script written by davide del giudice
'Script copyrighted by www.madeincalifornia.blogspot.com
'Script version Thursday, 16 September 2009 17:43:39
'----------------------------------------------------------------------------------------------
Dim i,arrpoint1,strSphere


For i=0 To 100

arrPoint1 = Array(i/5,cos(i),sin(i))


Rhino.AddPoint arrPoint1
Rhino.AddSphere arrPoint1, i*0.01

Next
///////////////////////////////////////////////////////////////////////////////////////////////



MIC Sphere array_circle vector n-1_02
///////////////////////////////////////////////////////////////////////////////////////////////
Option Explicit
'Script written by davide del giudice
'Script copyrighted by www.madeincalifornia.blogspot.com
'Script version Thursday, 16 September 2009 17:43:39

'----------------------------------------------------------------------------------------------




Dim i,j,arrpoint1,arrPoint2,arrPoint3,strSphere,arrPlane,arrLine1,arrLine2
Dim arrCircle1,arrCircle2,arrDynamic(0),arrVector1,arrVector2,arrPlane1,arrPlane2

For i=0 To 200

arrPoint1 = Array(cos(i)*i*0.01,sin(i)*i*0.01,i*0.05)
arrPoint2=Array(cos(i+1)*i*0.01,sin(i+1)*i*0.01,(i+1)*0.05)
arrPoint3=Array((i-1)*0.05,cos(i-1)*i*0.01,sin(i-1)*i*0.01)
Rhino.AddPoint arrPoint1
'Rhino.AddSphere arrPoint1, i*0.001

arrVector1=Rhino.VectorCreate (arrPoint1, arrPoint2)
arrVector2=Rhino.VectorCreate (arrPoint1, arrPoint3)

arrPlane1 = Rhino.PlaneFromNormal (arrPoint1, arrVector1)
arrPlane2= Rhino.PlaneFromNormal (arrPoint1, arrVector2)

arrCircle1=Rhino.AddCircle (arrPlane1, 0.05)
arrCircle2=Rhino.AddCircle (arrPlane2, 0.05)

arrLine1= Rhino.AddLine (arrPoint1, arrPoint2)

' rhino.AddLoftSrf arrCircle1,arrCircle2

Next

For j=0 To ubound (arrDynamic)

'rhino.AddLoftSrf arrCircle1,arrCircle2

Next
End Sub
///////////////////////////////////////////////////////////////////////////////////////////////





MIC Sphere array_phyllotaxis2
///////////////////////////////////////////////////////////////////////////////////////////////

Option Explicit
'Script written by davide del giudice
'Script copyrighted by www.madeincalifornia.blogspot.com
'Script version Thursday, 16 September 2009 17:43:39
'----------------------------------------------------------------------------------------------

Dim i,arrpoint1,arrPoint2,strSphere

For i=0 To 500

arrPoint1 = Array(cos(i)*i,sin(i)*i,i/1000)
arrPoint2 = Array((cos(i+1)*i),(sin(i+1)*i)+1,(i+1/1000))

Rhino.AddPoint arrPoint1
Rhino.AddPoint arrPoint2
'Rhino.AddSphere arrPoint1, i*0.1

rhino.AddLine arrPoint1,arrPoint2
Next
///////////////////////////////////////////////////////////////////////////////////////////////
