rh TowerContour

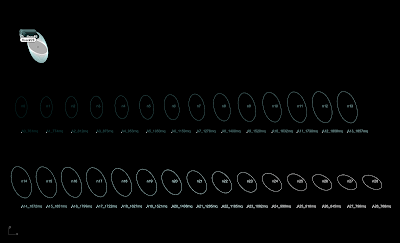

This script creates planar surfaces and puts a tag with the area value for each floor of the tower.

Download rhino file and contour.rvb

Option Explicit

'Script written by davide del giudice

'Script copyrighted by www.co-de-it.com

'Script version Saturday, 09 Oct 2011

Call Contour()

Sub Contour()

Dim srf1,arrcrvs,startpt,endpt,arrst,arrend, int,crv,counter,counter2

srf1=rhino.GetObject("select surface",8+16)

int= rhino.GetInteger ("select height floor",10,1,100)

startpt=rhino.getobject("select start point",1)

endpt=rhino.Getobject("select end point",1)

arrst=rhino.PointCoordinates (startpt)

arrend=rhino.PointCoordinates (endpt)

arrcrvs=Rhino.AddSrfContourCrvs (srf1, arrst, arrend,int)

rhino.HideObject srf1

counter=0

counter2=0

For Each crv In arrcrvs

If rhino.iscurveclosed(crv) Then

Dim centroid:centroid=Rhino.CurveAreaCentroid (crv)

Dim area:area=rhino.curveArea (crv)

Call rhino.ObjectColor (crv, rgb (((counter*10)+50),((counter*10)+50),((counter*10)+50)))

Dim area1:area1=Rhino.Ceil (area(0))

Dim arrBox:arrBox=Rhino.BoundingBox (crv)

Dim arrpoint

Dim dot:dot= rhino.AddTextDot ("floor#"&counter, arrBox(3))

Dim plansrf:plansrf=rhino.AddPlanarSrf (array(arrcrvs(counter)))

Call rhino.ObjectColor (plansrf, rgb (((counter*10)+50),((counter*10)+50),((counter*10)+50)))

Call rhino.ObjectColor (dot, rgb (((counter*10)+10),((counter*10)+50),((counter*10)+50)))

If counter

rhino.addpoint array(counter*50,0,0)

Call rhino.MoveObject (crv,centroid(0),array(counter*50,50,0))

Dim txt1:txt1=rhino.AddText ("A"&counter&"_"&area1&"mq",array(counter*50,0,0),5)

Dim txt3:txt3=rhino.AddText ("n"&counter,array(counter*50,50,0),5)

Call rhino.ObjectColor (txt1, rgb (((counter*10)+50),((counter*10)+50),((counter*10)+50)))

Call rhino.ObjectColor (txt3, rgb (((counter*10)+50),((counter*10)+50),((counter*10)+50)))

Else

rhino.addpoint array(counter2*50,-150,0)

Call rhino.MoveObject (crv,centroid(0),array(counter2*50,-100,0))

Dim txt2:txt2= rhino.AddText ("A"&counter&"_"&area1&"mq",array(counter2*50,-150,0),5)

Dim txt4:txt4= rhino.AddText ("n"&counter,array(counter2*50,-100,0),5)

Call rhino.ObjectColor (txt2, rgb (((counter*10)+50),((counter*10)+50),((counter*10)+50)))

Call rhino.ObjectColor (txt4, rgb (((counter*10)+50),((counter*10)+50),((counter*10)+50)))

counter2=counter2+1

End If

End If

counter=counter+1

Next

End Sub
