Flat panels01

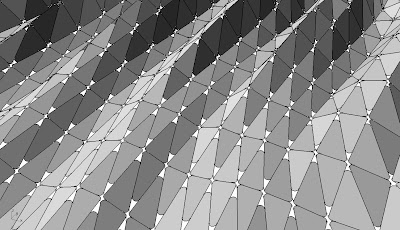

I'm working on complex surface tesselation with triangular flat panels. This rhinoscript:

-plot a grid of points at U,V parameters of input surface

-draws 3 lines in order to create a triangular shape

-fillet lines with variable radius to rounded the edges of triangle shape

-extract endpoints and startpoints of fillet arcs

-draw lines from start points to endpoints in sequence

-join results curves

-add planar surface to realize flat panel with rounded corners

"hot" code:

-------------

For i =1 To Intuint-2 Step 2

For j =1 To intvint-2 Step 2

arrcurve5=array(arrpt(i,j),arrpt(i+2,j))

arrcurve6=array(arrpt(i+2,j),arrpt(i,j+2))

arrcurve7=array(arrpt(i,j+2),arrpt(i,j))

strcurve5=rhino.AddCurve(arrcurve5,1)

strcurve6=rhino.AddCurve(arrcurve6,1)

strcurve7=rhino.AddCurve(arrcurve7,1)

arrfillet1= rhino.addfilletcurve(strcurve5,strcurve6,1)

arrFillet = Rhino.CurveFilletPoints(strCurve5, strCurve6,1)



arrfillet2= rhino.addfilletcurve(strcurve6,strcurve7,1)

arrFillet = Rhino.CurveFilletPoints(strCurve6, strCurve7,1)



arrfillet3= rhino.addfilletcurve(strcurve7,strcurve5,1)

arrFillet = Rhino.CurveFilletPoints(strCurve7, strCurve5,1)



arrpt1 = Rhino.CurveendPoint(arrfillet3)

Rhino.AddPoint arrpt1

arrpt2 = Rhino.CurvestartPoint(arrfillet1)

Rhino.AddPoint arrpt2



arrpt3 = Rhino.CurvestartPoint(arrfillet3)

Rhino.AddPoint arrpt3

arrpt4 = Rhino.CurveendPoint(arrfillet2)

Rhino.AddPoint arrpt4

arrpt5 = Rhino.CurveendPoint(arrfillet1)



Rhino.AddPoint arrpt5

arrpt6 = Rhino.CurvestartPoint(arrfillet2)



Rhino.AddPoint arrpt6

strcurve10= Rhino.AddLine (arrpt1, arrpt2)

strcurve11= Rhino.AddLine (arrpt3, arrpt4)

strcurve12= Rhino.AddLine (arrpt5, arrpt6)



Rhino.JoinCurves array(strcurve10,strcurve11,strcurve12,arrfillet1, arrfillet2,arrfillet3)

Rhino.AddPlanarSrf array(strcurve10,strcurve11,strcurve12,arrfillet1, arrfillet2, arrfillet3)

--------------------------
