Phyllotaxis System03

Phyllotaxis system lofting variations.

Phyllotaxis System02

Phyllotaxis system variations by rhinoscript code.

Phyllotaxis system01

From Wikipedia "In botany, phyllotaxis or phyllotaxy is the arrangement of the leaves on the stem of a plant.

I'm working on phyllotaxis system in order to construct vertical spiral variations with a rhinoscript code:

-plot an array of points by x,y,z coordinates follwing mathematical logic with several variations

-draws 2 lines in order to draw first petal profile

-divide profile in one array of points defined by the user

-draw circle with previous array points as centerpoint and curvature value of profile petal as radius

-create loft surfaces

-make a polar array to realize final system

"hot" code:

----------------------

'Script copyrighted by www.madeincalifornia.blogspot.com

'Script version Thursday, 16 April 2009 17:43:39

Call phyllotaxis_system()

Sub phyllotaxis_system()

Dim x,y,z,theta

Dim n:n=0

Dim dbla,dblb,dble,strobjects,strtxt,strline,ArrCurves3,p

'Call Rhino.EnableRedraw(False)

For n=0 To 50 Step 0.5

ReDim Preserve arrPts(n),arrPts1(n)

ReDim Preserve arrcircle(n),arrcone(n)

Dim arrplane

theta=(n/100)*rhino.pi

dbla=1

dblb=2

dble= 2.7182818284590

x=dbla*(dble*(dblb*theta))*cos(theta)

y= -dbla*(dble*(dblb*theta))*sin(theta)

z=log10(n)*10/2

arrPts(n) = array(x,y,z)

rhino.AddPoint arrpts(n)

Next

End Sub

----------------------

parametrically...

image credits: David Rutten

Interesting discussions about the definition of Parametric:

Parametric modelling - why bother?

Generating a curve parametrically.

Gehry rewrites the rules of modelling

An example of massive parametric modelling at DRL (Design Research Laboratory, AA) thesis form third and final phase of parametric urbanism agenda: denCity is a Masters level research project by Sahra (Peter Sovinc, Saif Almasri, Suryansh Chandra)

http://arcode.blogspot.com/

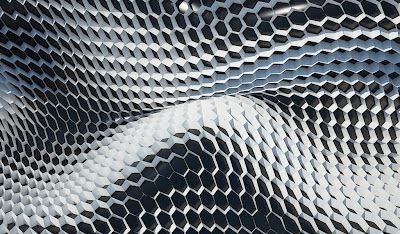

Simple Honeycomb05
