10 May 2010

RH control Points01

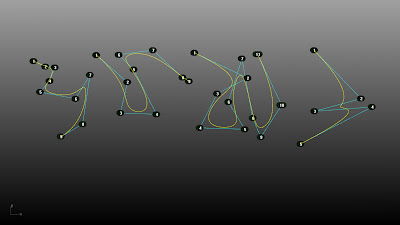

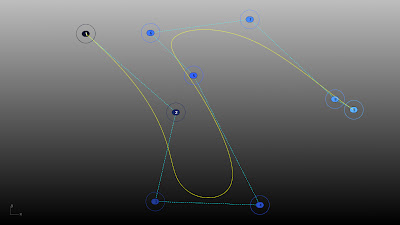

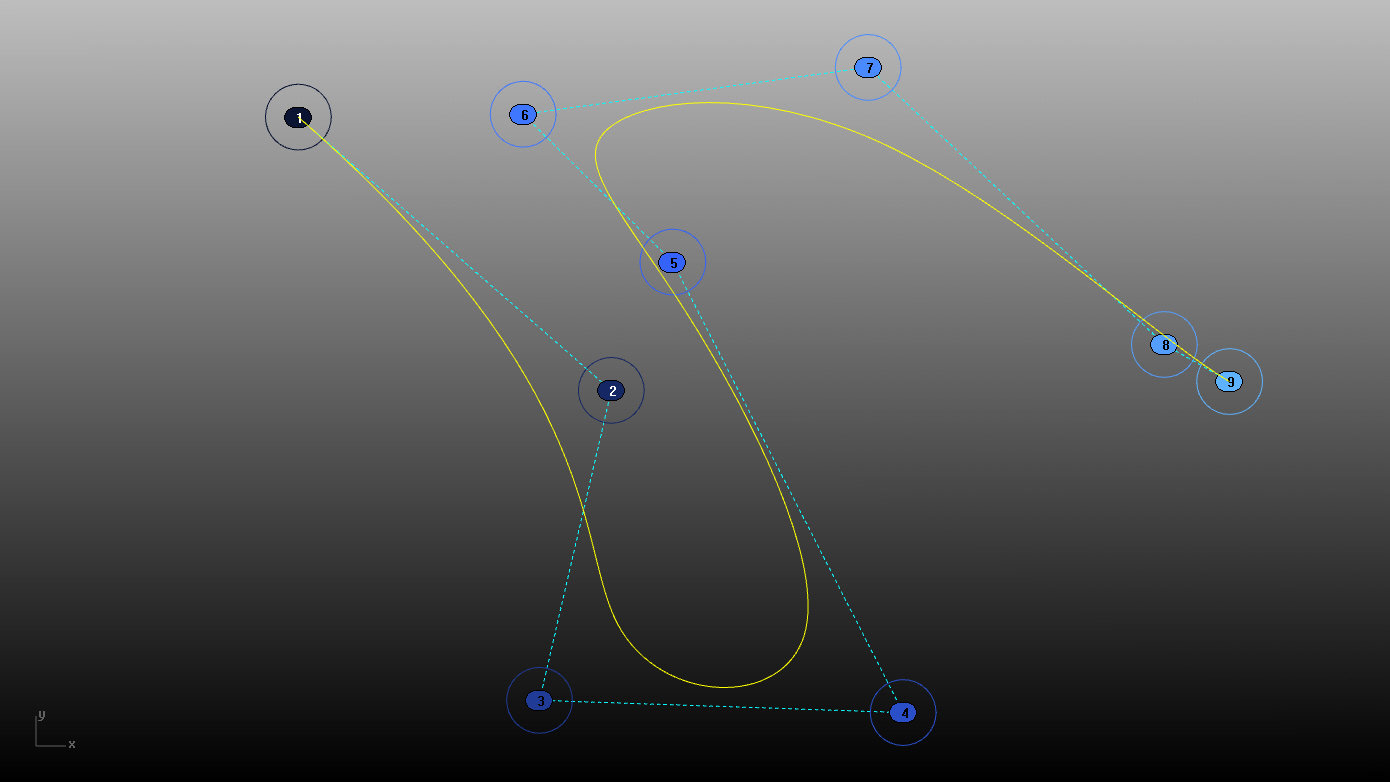

A rhinoscript that extracts control points form a curve and connects cps with a dashed polyline.
Option Explicit
'Script written by davide del giudice
'Script copyrighted by www.madeincalifornia.blogspot.com
'Script version Friday, 23 April 2010 15:17:58

Call circleOncp_multiplelines()
Sub circleOncp_multiplelines()
Dim arrplane,arrpoint,strdot,count,strobject,strlines,arrcircle

Dim arrobjects: arrObjects = Rhino.GetObjects("Select a curve",4)

For Each strobject In arrobjects

Dim arrpoints:arrPoints = Rhino.CurvePoints(strObject)

For Each arrPoint In arrPoints
Rhino.AddPoint arrpoint

arrplane = Rhino.PlaneFromFrame(arrpoint, Array(1.0,0.0,0.0), Array(0.0,1.0,0.0))
arrcircle= Rhino.AddCircle (arrPlane,5)
strDot=Rhino.AddTextDot (" "& count, arrPoint)
Call Rhino.ObjectColor(strDot, RGB(count*10,count*20,count*50))
Call Rhino.ObjectColor(arrcircle, RGB(count*10,count*20,count*50))

strlines=rhino.addPolyline (arrpoints)
Rhino.ObjectLinetype strlines, "dashed"
Call rhino.ObjectColor(strlines,RGB(0,255,255))

End Sub
