Gradient color Rhinoscript.

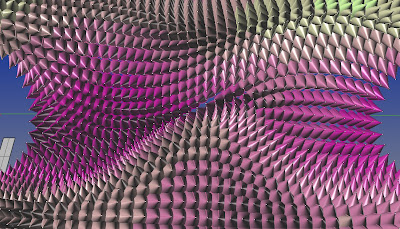

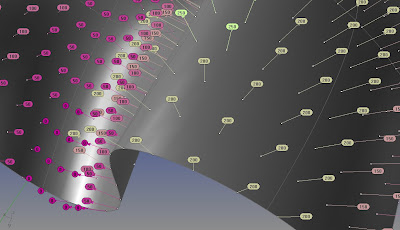

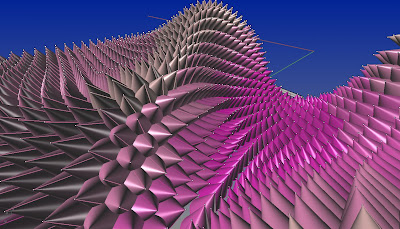

Inspired by Paramod, last month i adapted one rhinoscript found in this blog in order to realize a script that draw cones at u,v of surface and change their color controlled by the Z value of the cones. In other case a gradient color, vector lines and a complete numeration of the normals at surface are plotted as you can see at these images.

//////////////

Option Explicit

'             Script written by PARAMOD

              'adapted by Davide del Giudice

'             http://madeincalifornia.blogspot.com/

'Script version giovedì 15 aprile 2009

Call GradientColorAddNormalVector()

Sub GradientColorAddNormalVector()

Const rhObjectPoint = 1

Dim strObject, arrCoordPoint

Dim i, j, n: n=0

DIM o: o=0

Dim p: p=0

Dim strSrf

Dim Udomain, Vdomain

Dim arrPt, strTxt

Dim Ustep, Vstep

Dim intDivider

Dim u, v, zspread, zz, zround, zcolor

Dim vectNormal, arrPointNormal, strCoords, arrCoords

Dim strLine

Dim arrPlane

Dim strCircle

Dim arrCones

Dim strMax, maxZ, minZ

Dim strtextdot

'pick surface

strSrf = Rhino.GetObject ("pick surface", 8)

'get surface domain

Udomain = Rhino.SurfaceDomain (strSrf, 0)

Vdomain = Rhino.SurfaceDomain (strSrf, 1)

Call rhino.Print(UDomain(0) & "," & UDomain(1) )

Call rhino.Print(VDomain(0) & "," & VDomain(1))

'get domain point

Dim Umean, Vmean

Umean = UDomain(0)+ (UDomain (1) - Udomain (0)) / 2

Umean = Round (Umean,2)

Vmean = VDomain(0)+ (VDomain (1) - Vdomain (0)) / 2

Vmean = Round (Vmean,2)

Call rhino.Print(Umean & "," & Vmean)

'step

intDivider = rhino.Getinteger ("get number of intDivider",1,10,50)

Ustep = (Udomain(1) - Udomain (0)) / IntDivider

Vstep = (Vdomain(1) - Vdomain (0)) / IntDivider

'Call rhino.EnableRedraw (False)

'loop

For i = 0 To intDivider

For j = 0 To IntDivider

u = Udomain (0)+ Ustep*i

v = Vdomain(0)+ Vstep*j

arrPt = rhino.EvaluateSurface (strSrf, array (u,v))

Call rhino.addpoint(arrPt)

strCoords = rhino.addpoint(arrPt)

arrCoords = Rhino.PointCoordinates (strCoords)

'strtextdot= Rhino.AddTextDot (n+1, arrPt)

ReDim Preserve Z(n)

Z(n) = arrCoords(2)

zz = arrCoords(2)

'Call Rhino.AddTextDot (zz, arrCoords)

If n > 0 Then

End If

n = n+1



Next

Next

maxZ = Rhino.Max(z)

Call Rhino.Print (maxZ & "maximum")

minZ = Rhino.Min(z)

Call Rhino.Print (minZ & "minimum")

zspread = maxZ - minZ

Call Rhino.Print (Zspread & "spread")

'loop

For i = 0 To intDivider

For j = 0 To IntDivider

u = Udomain (0)+ Ustep*i

v = Vdomain(0)+ Vstep*j

arrPt = rhino.EvaluateSurface (strSrf, array (u,v))

Call rhino.addpoint(arrPt)

strCoords = rhino.addpoint(arrPt)

arrCoords = Rhino.PointCoordinates (strCoords)

strObject = arrCoords

'arrCoordPoint = Rhino.PointCoordinates(strObject)

'Call Rhino.Print Rhino.Pt2Str(arrCoordPoint, 3)

'Call Rhino.AddTextDot (arrCoords(2),arrCoords)

vectNormal  = Rhino.SurfaceNormal (strSrf, array (u,v))

vectNormal = rhino.VectorScale (vectNormal, 2)

arrPointNormal = Rhino.PointAdd (arrPt, vectNormal)

zz = arrCoords(2)

strLine = rhino.AddLine (arrPt, arrPointNormal)

Call Rhino.CurveArrows (strLine ,2)

arrPlane = Rhino.PlaneFromNormal (arrPt, vectNormal)

'Call Rhino.AddPlaneSurface (arrPlane, 2, 2)

'strCircle =  rhino.AddCircle (arrPlane, 10/intDivider*(i))

'Call Rhino.AddPlanarSrf ( array (strCircle) )

'arrCones = Rhino.AddCone (arrPlane, 2,1, True)

zcolor = ((zz - minZ)*(255/(maxZ-minZ)))

zround = 50 * (Rhino.Floor(zcolor/50))

'Call rhino.ObjectColor (arrcones, rgb (200,zround,150) )

Call rhino.ObjectColor (strline, rgb (200,zround,150) )

strtextdot= Rhino.AddTextDot (zround, arrPointNormal)

Call rhino.ObjectColor (strtextdot, rgb (200,zround,150) )

Next

Next

' Call rhino.EnableRedraw (True)

End Sub

//////////////
