Multiple points attractors 01

First attempt in a multiple point attractors rhinoscripts. I started from a code founded at Mark Bearak's Blog, then i adapted to my case. This script (I know, it's very simple ) :

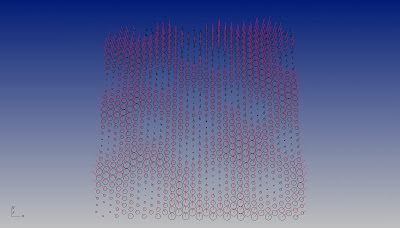

-plots a grid of points choosing x and y values

-add circles with a radius defined by the distances from center of circle and point attractor

-draw a loft surface between first array of circles at x,y,z world plane and second array of circles at x,y,z world shifted of the same amount of the circles radius

-add planar surface to the second array of circles in order to create a cap closed surface

//////////////////////

'Option Explicit

'Script written by Mark Bearak

'Script version Tuesday, September 18, 2007 1:26:12 PM

  'adapted by Davide del Giudice

'             http://madeincalifornia.blogspot.com/

Call Main()

Sub Main()

Dim arrStrAttractors : arrStrAttractors = Rhino.GetObjects ("select the attractors", 1)

Dim intXMax : intXMax = Rhino.GetInteger ("how many in x?", 50)

Dim intYMax : intYMax = Rhino.GetInteger ("how many in y?",50)

Dim d : d = Rhino.GetInteger ("max distance of falloff?", 5)

Dim Color : Color = 255

Dim c : c = Color/d

ReDim arrAttractors(UBound(arrStrAttractors))

Dim strAttractor, k

k=0

For Each strAttractor In arrStrAttractors

arrAttractors(k)    = Rhino.pointcoordinates (strAttractor)

k=k+1

Next

Dim i, j, l, v

For i=0 To intXMax

For j=0 To intYmax

'Rhino.EnableRedraw (False)

If i Mod 2 = 0 Then

l=j+.57735

Else

l=j

End If

Dim arrAttractor

Dim dblDistance  : dblDistance  = d

v=dblDistance/20

Dim arrCenter    : arrCenter    = Array(i,l,0)

For Each arrAttractor In arrAttractors

Dim testDistance : testDistance = Rhino.distance (arrCenter, arrAttractor)

If testDistance <>

dblDistance = testDistance

End If

Next

Call Rhino.AddPoint (array(i,l,0))

arrPoints= Rhino.AddPoint (array(i,l,0))

Dim arrPlane,strpath,arrplane2,arrplane3,arrplane4,strObjects, strObjects2

arrplane2=Rhino.WorldXYPlane 'Rhino.PlaneFromPoints (array(i,i,0),array(i-1,i-1,0), array(i+1,i+1,0))

arrplane= Rhino.MovePlane (arrPlane2, array(i,l,0))

arrplane3=Rhino.WorldXYPlane

arrplane4= Rhino.MovePlane (arrPlane3, array(i,l,dblDistance))

strObjects= rhino.AddCircle (arrPlane, dblDistance*0.1)

strObjects2= rhino.AddCircle (arrPlane4, dblDistance*0.1)

strPath = Rhino.AddLine(Array(i,l,0), Array(i,l,dblDistance))



Call rhino.addloftsrf( array (strObjects,strObjects2))

Call Rhino.AddPlanarSrf (array(strObjects2))

'Rhino.ExtrudeCurve arrObjects, strPath

'Call Rhino.DeleteObjects (arrObject)

Dim lngColor : lngColor = Color -(dblDistance*c)

If lngColor <>

lngColor = 0

End If

Dim arrColorR : arrColorR = (127-(fix(dblDistance*(127/c))))

Dim arrColorB : arrColorB = (191+(fix(dblDistance*(64/c))))

' Call Rhino.objectColor (strSrf, rgb(arrColorR,255,arrColorB))

' Call Rhino.objectColor (arrLoftSurface, rgb(arrColorR,255,arrColorB))

' j=j+.1547

Next

Next

Rhino.DeleteObjects (arrStrAttractors)

'rhino.EnableRedraw (True)

End Sub

//////////////////////
